VCSELs for Gas sensing
VCSELs for Gas sensing

VERTILAS‘ long wavelength VCSEL technology offers a wide range of products for various applications.The product line offers several packaging options, ranging from open packages for prototyping to a hermetically sealed packaged with cap and anti reflective coated window.It also includes pigtail solutions and further customer specific options are avilable on request.

The high performance VERTILAS technology and products enable customers to design and manufacture spectroscopy solutions that offer high sensitivity, low power dissipation, small system size and cost effective manufacturing.

SUPPLIER: VERTILAS GmbH


INTRODUCTION

Key features


◆ Long wavelength single mode VCSEL

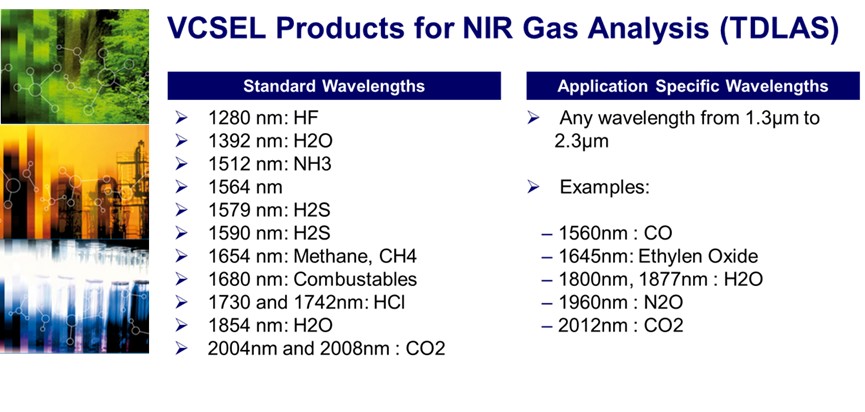

◆ Available standard wavelengths range between 1278 nm and 2300 nm

◆ Operating temperature: -20 to +70 °C (max.)

◆ Wide tunability and wavelength accuracy

◆ Fast performance for current modulation

◆ Cooled and un-cooled versions available

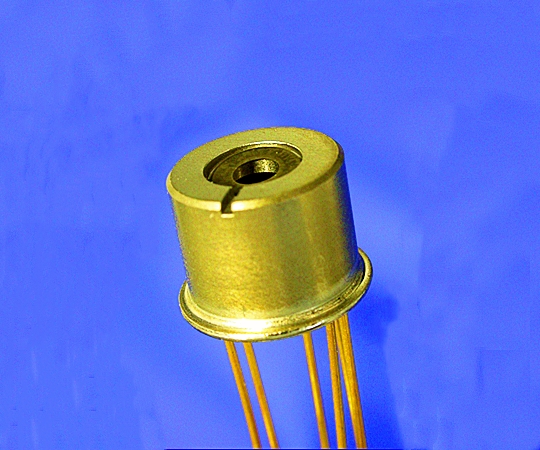

◆ Various packaging options (TO, pigtail, hermetically sealed, etc.)

◆ Low power dissipation and low threshold voltage and current

VCSEL Gas sensing.jpg
